Chester Chest™ Vascular Access Simulator With Standard Arm, Light

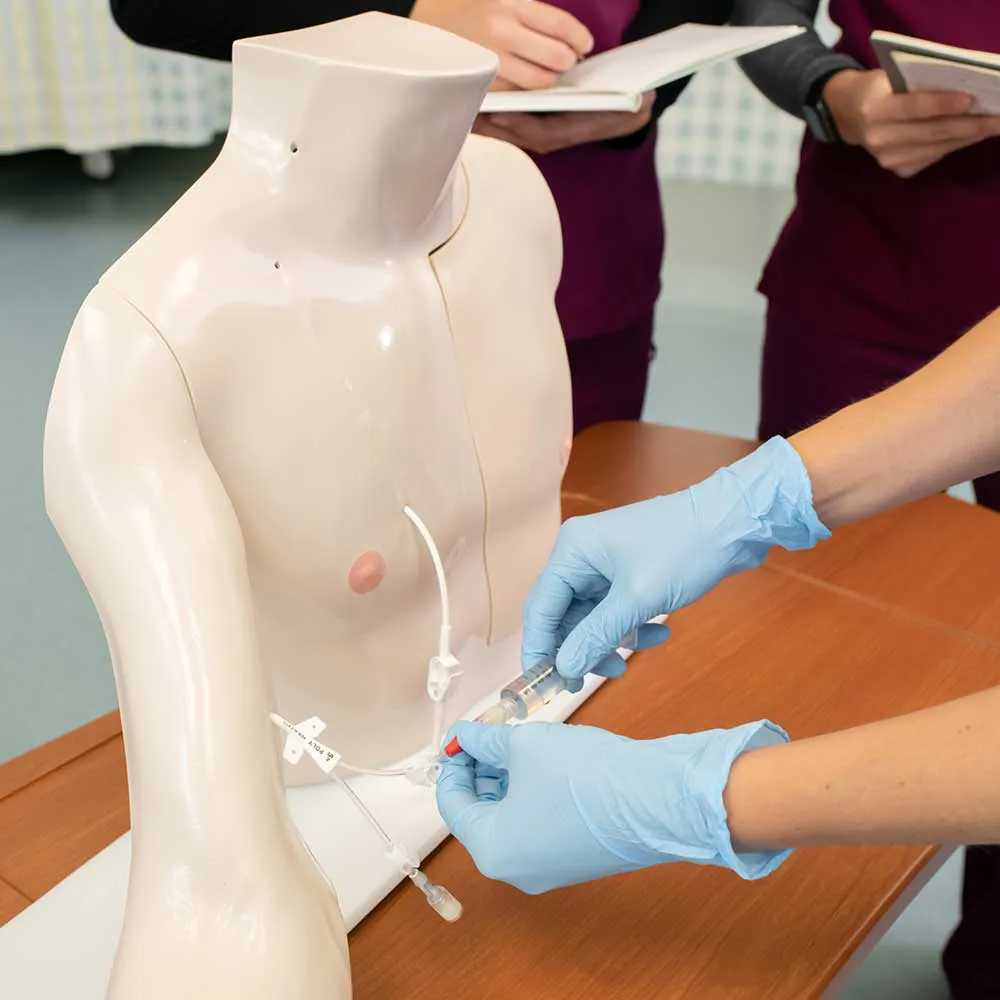

Chester Chest™ has been an industry standard since it was developed by VATA in 1986 for the teaching of central line
care. The right chest area of the Chester Chest™ model has a 9.6Fr tunneled central catheter that is visible up to
the
clavicle. The Dacron cuff on this catheter is also discernable. The external jugular vein is slightly raised with an
opening to attach your own triple lumen catheter. There is also an opening in the upper chest area of this patient
simulation model for placement of a subclavian catheter. These optional catheters are available, or if you prefer,
you
can send us the catheters your institution uses and we will install them into your Chester Chest at no charge.

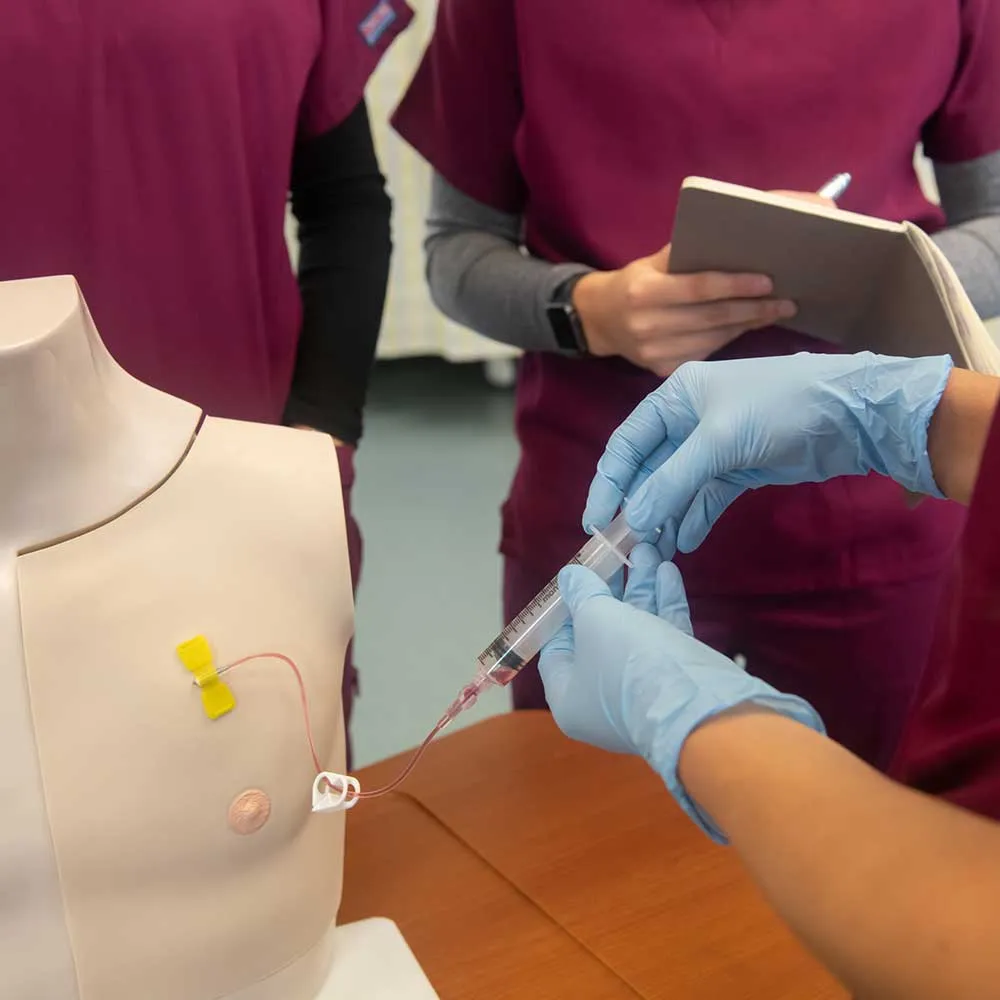

Simulate accessing the following IVAD placements in this medical simulation model: “normal”, “tipping”, “wandering”
or

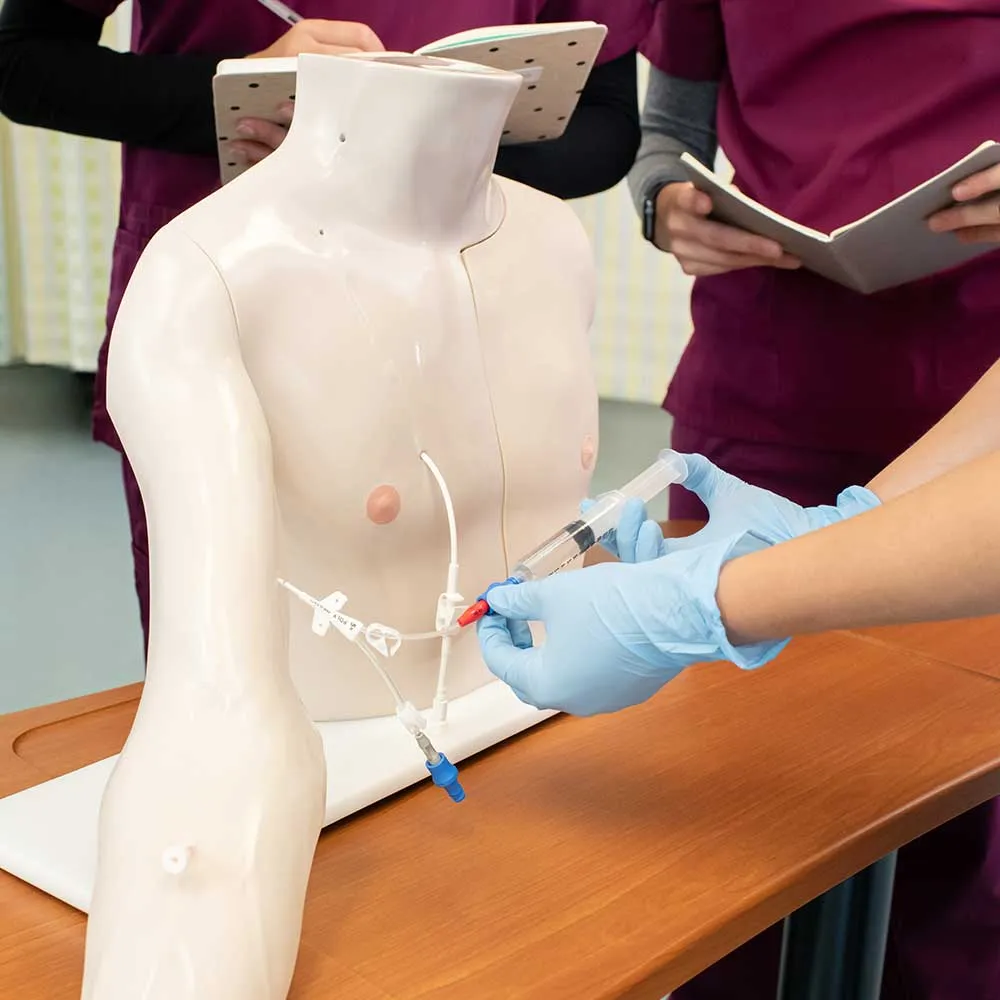

deeply placed in the left chest area. Successful access is confirmed by a “blood” return. Fluid can be infused and
“blood” withdrawn from all the lines.

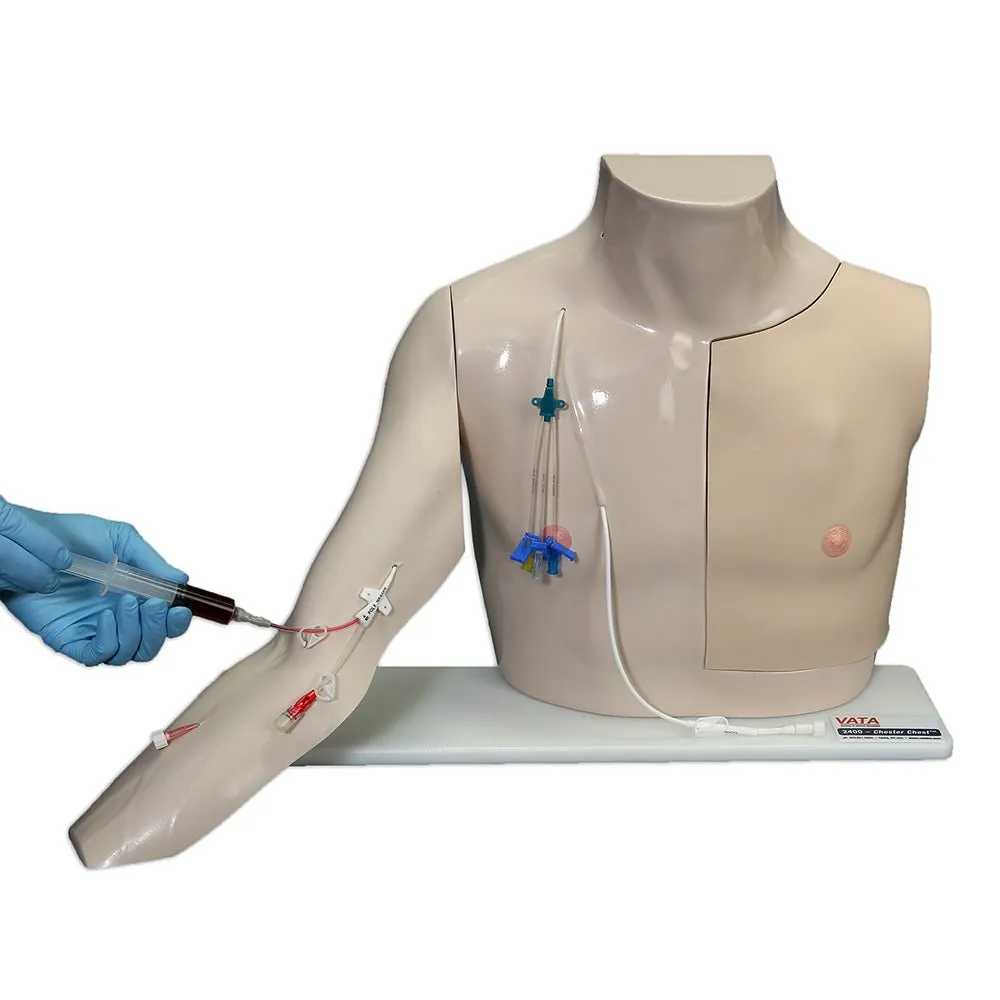

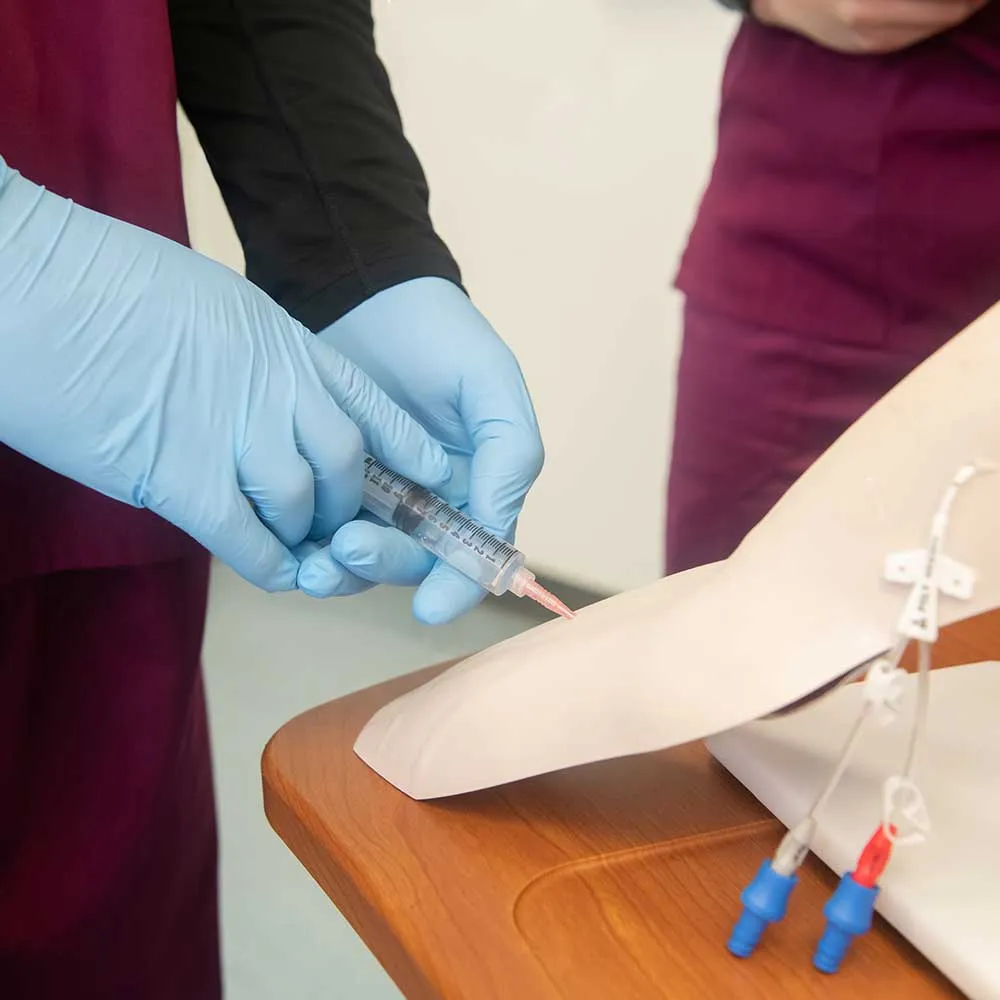

Chester’s arm features a dual 5Fr PICC exiting the basilic vein from the
inner bicep area, which is currently the preferred site for placement. The basilic vein is slightly raised for easy
identification. Also featured is a pre-positioned 20g IV catheter in the forearm.
The Chester Chest™ healthcare simulation model is a great tool for teaching, competency testing, skills

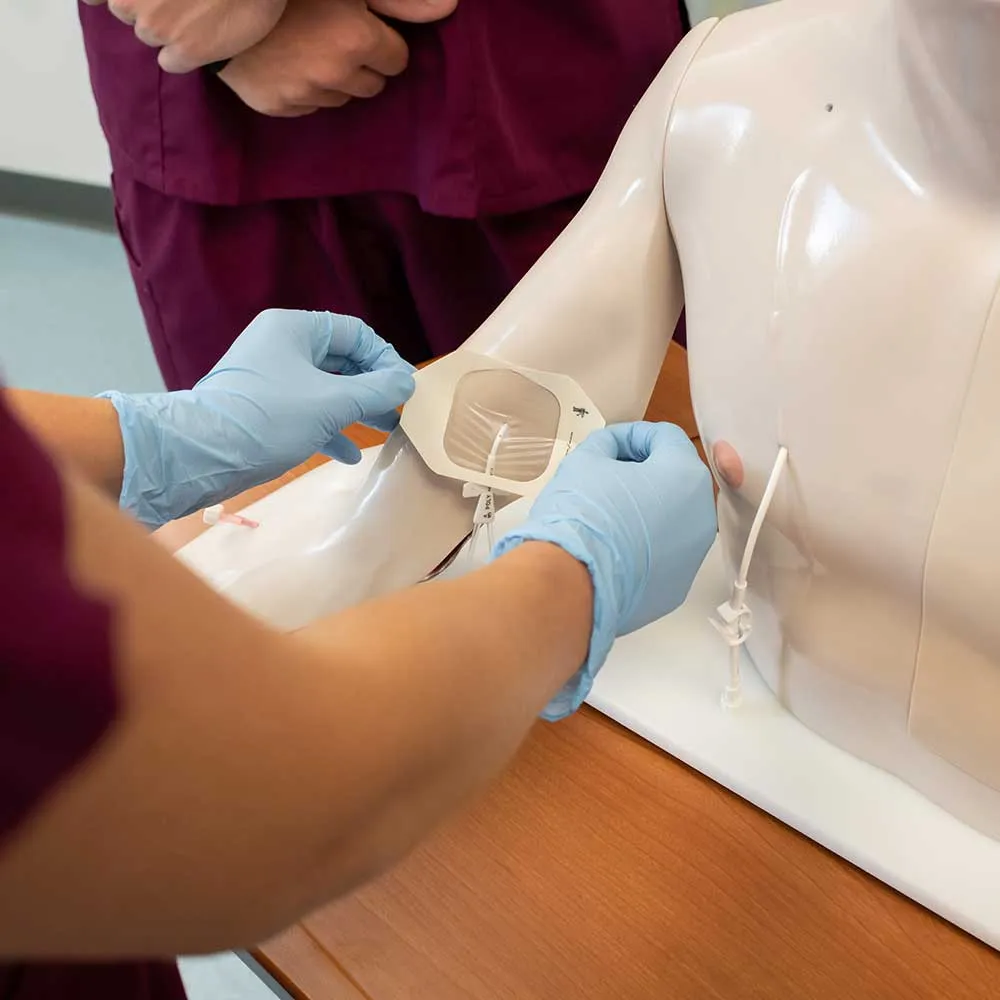

assessment, fluid infusion, “blood” withdrawal and dressing securement techniques associated with central access
devices!

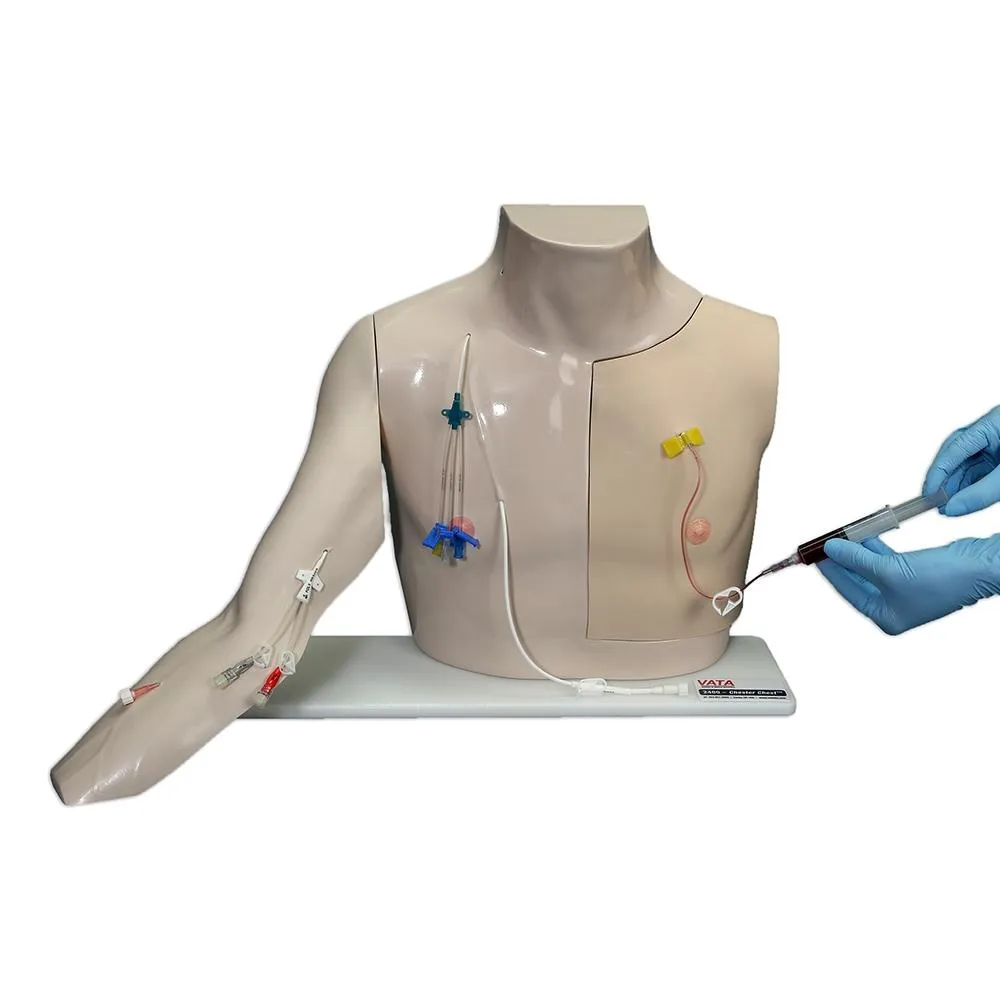

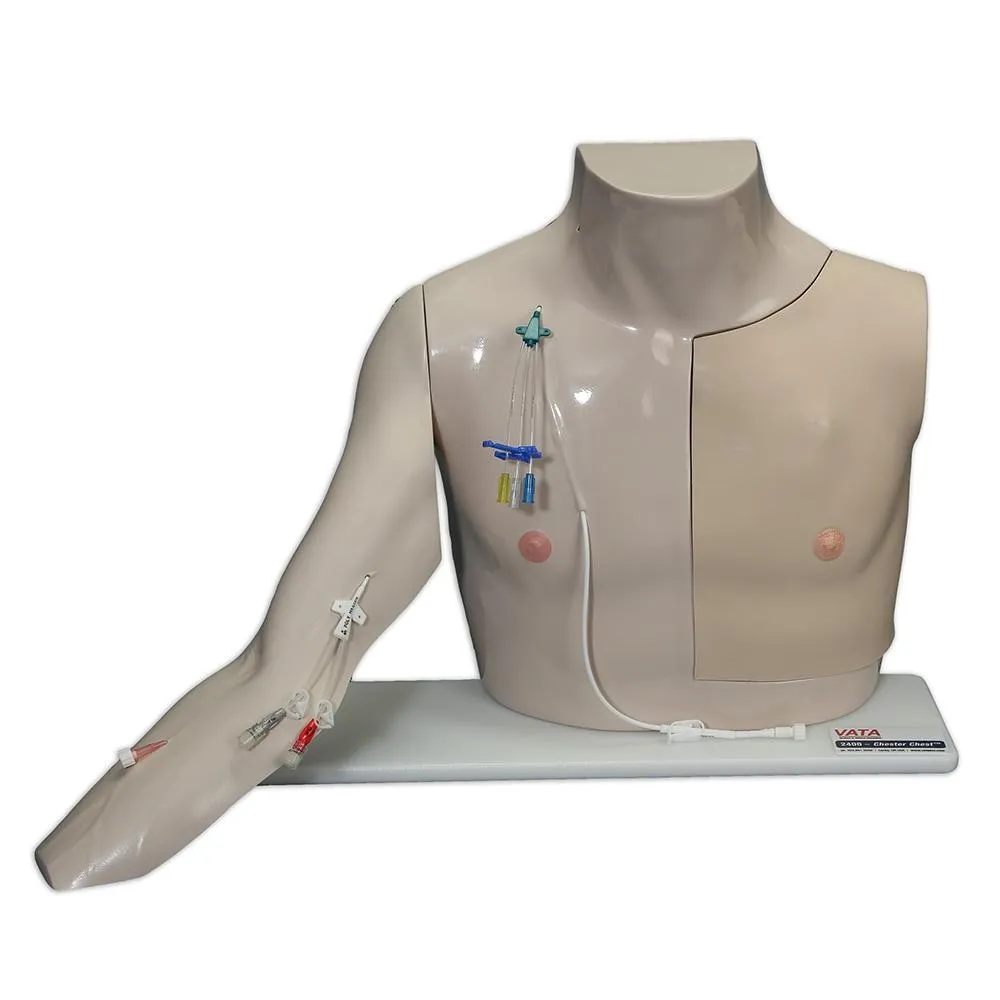

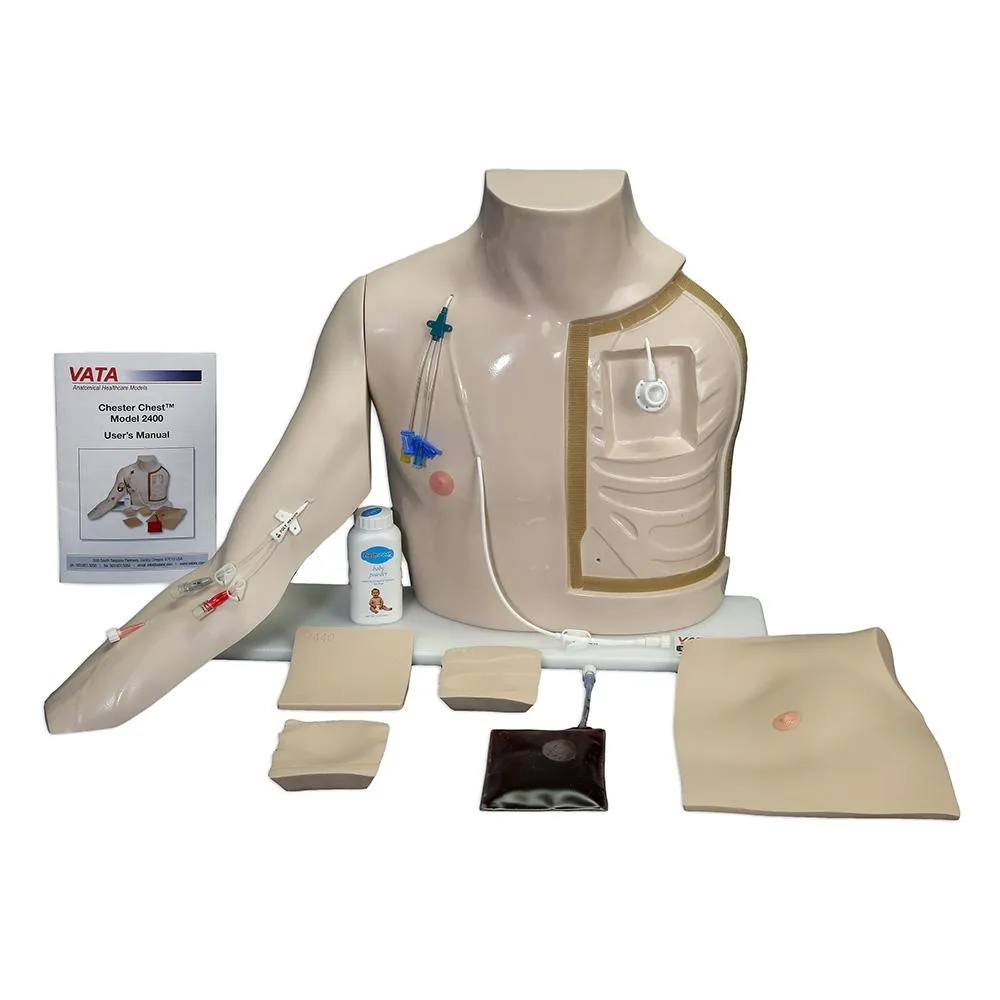

Chester Chest With Standard Arm
2 Tunneled Cental Catheter 9.6FR
3 Base
4 Outer Tissue Flap
5 Simulated Blood Reservior Bagfor Torso
6 Difficult Accessing Insertsimulates “tipping” port
7 Difficult Access Insert simulates a “wandering” port
8 Difficult Access Insert simulates a deeply placed port
9 Talc-Cornstarch
11 User’s Manual
12 Dual Lumen PICC 5FR
13 Standard Arm

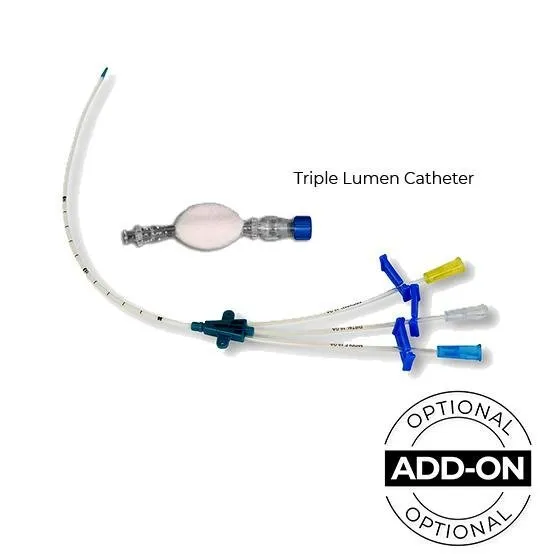

14 Optional Triple LumenCatheter Shown(See Models & Parts on p.15)
15 Opening for Optional Subcalvian Catheter
16 Opening for Optional Jugular Catheter
17 Torso

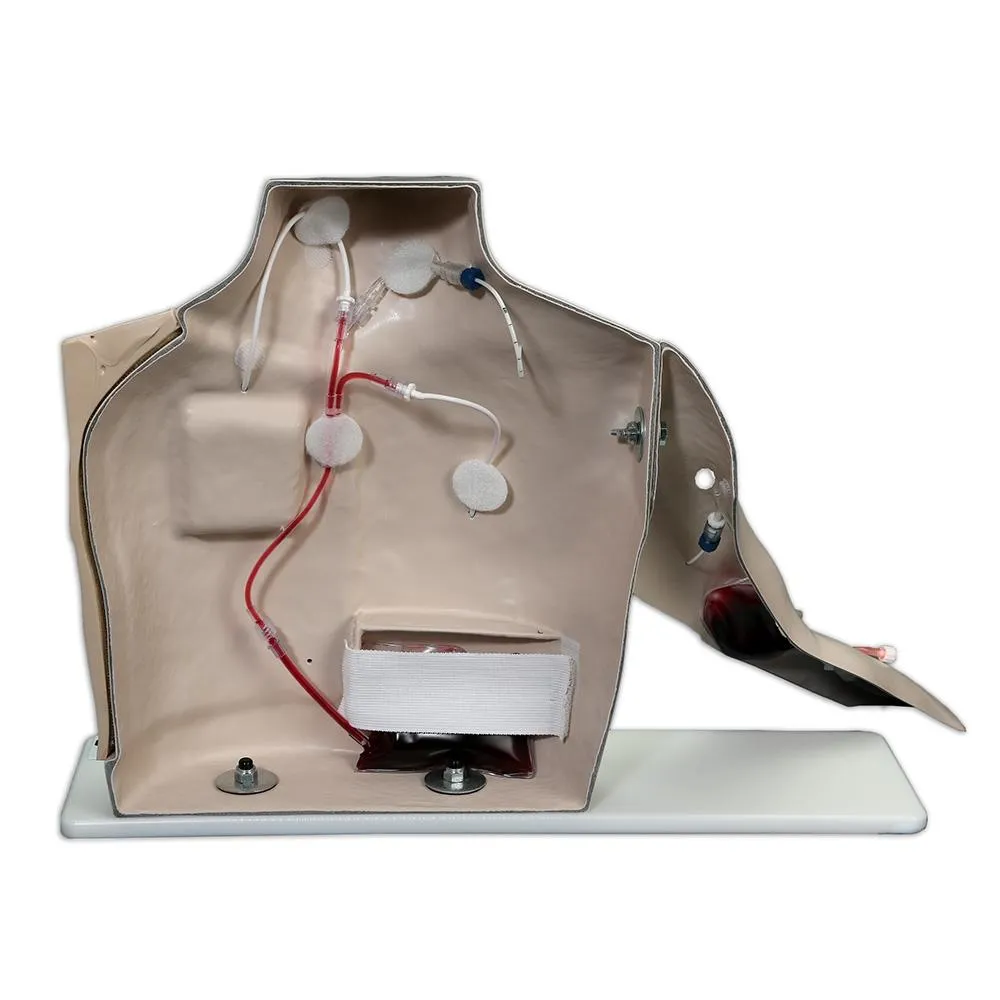

Backside Chester Chest With Standard Arm
2 Retention Strap for Simulated Blood Reservoir Bag
3 Three Way Parallel Tubing Set for Torso
4 Extra connection for use with with Optional Triple Lumen, Subclavian and Jugular Catheters
5 Bolt and Wing Nut to Attach Arm to Torso
Standard Arm
2 0408 Dual Lumen PICC 5FR
5 0455 Bolt and Wing Nut to Attach Arm to Torso
6 Dual PICC Attachment to Tubing Set
7 0446 Tubing Set for Arm
8 20G IV Catheter Attachment to Tubing Set
9 0453 Simulated Blood Reservoir Bag for Arm
10 Snap Clamps
Download:
Made in USA by Vata Inc. and sold by GTSimulators.
