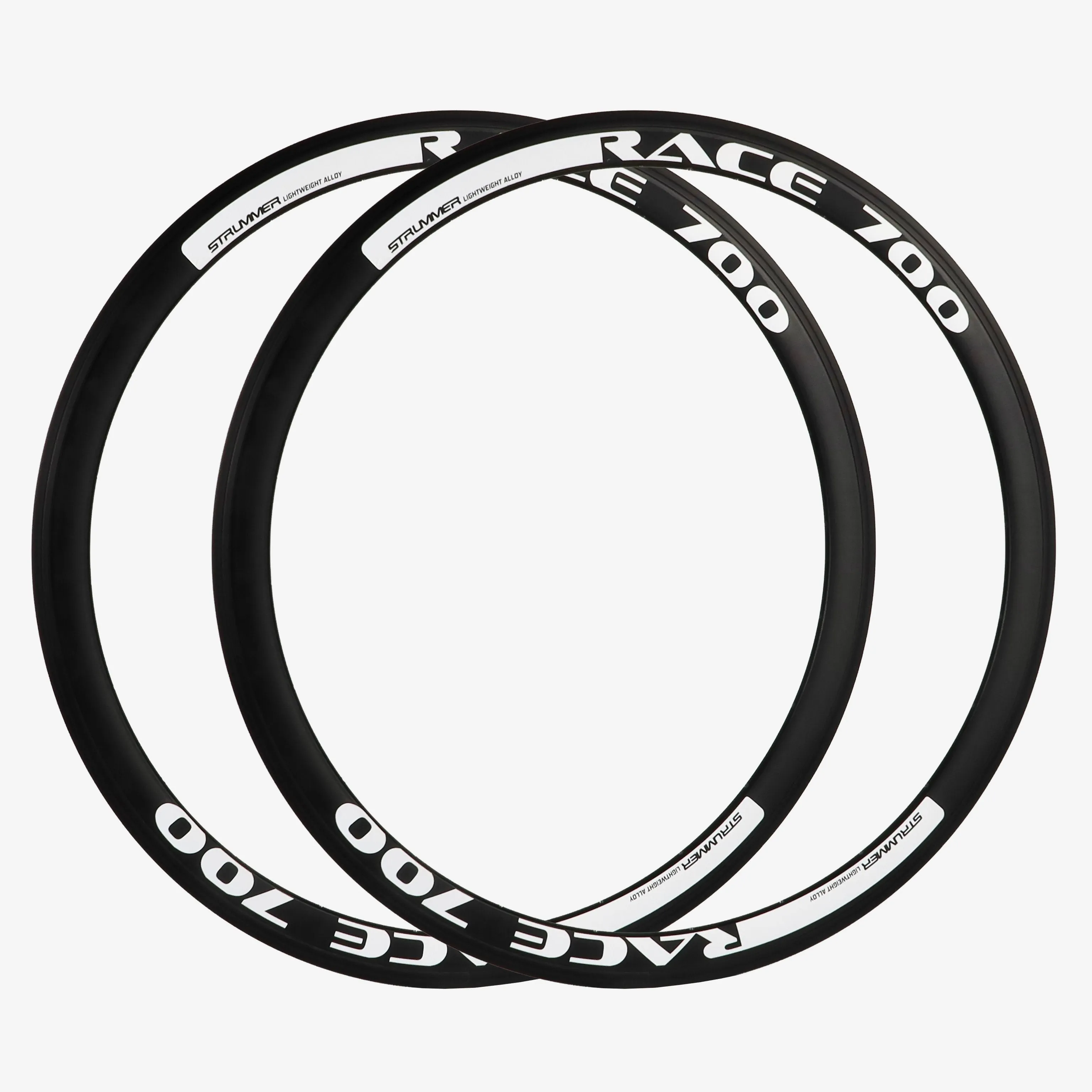

Race-700 is Strummer's entry level 700c rims for road bike. Constructed from lightweight alloy, this rim is reliable for everyday road and pavement.

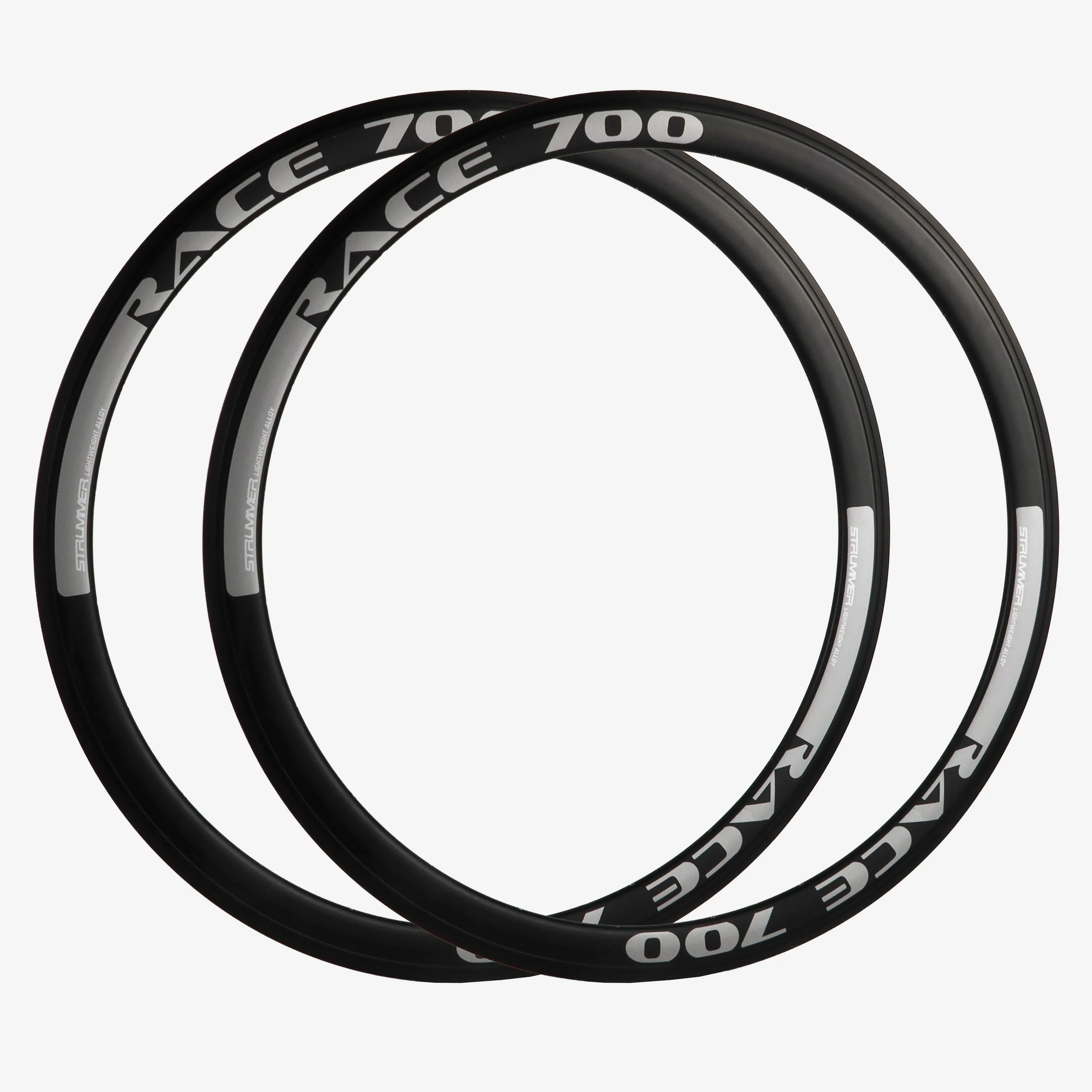

Strummer Race-700 Disc is now available in 40mm profile variant, with two decal options available: Black/White & Black/Grey. Currently available with 20/24 Hole drilling.
Specifications
Size: 700c
Inner Width: 16 mm
Outer Width: 22.5 mm
ERD: 560 mm
Ideal Tire Size (ETRTO): 25/28/32/35 mm Width
Profile: 40 mm
Holes: 20/24H
Total Weight: 1600 grams (2 pcs)
Wheelbuilding Guide
- Use the information below as a guide. Please double check information.
- While we do our best to make sure that information below is error free, it is possible for mistakes to happen albeit rare. Strummer is not responsible for incompatible spoke size due to human error, miscalculation, and any other errors.
- Information below is based on theoretical calculation. There might be difference due to manufacturing tolerances.
- Updated 23-Feb-2022.
Strummer Race-700™ 40mm X Strummer HR-10 Ratchet [ 20 / 24 Holes ]
| Front Hub | Left Spoke | Right Spoke |
| 0 Cross (Radial) | 265 mm | 265 mm |
| 1 Cross | 268 mm | 268 mm |
| 2 Cross | 276 mm | 276 mm |
| 3 Cross | 286 mm | 286 mm |
| Rear Hub | Left Spoke | Right Spoke |
| 0 Cross (Radial) | 262 mm | 255 mm |
| 1 Cross | 265 mm | 258 mm |
| 2 Cross | 272 mm | 268 mm |
| 3 Cross | 282 mm | 280 mm |
